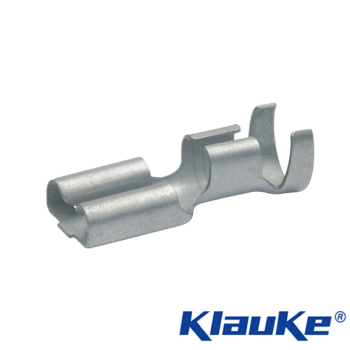

Klauke non-insulated receptacles with locking latch

Klauke non-insulated receptacles with locking latch

Descriptions

Klauke un-insulated receptacle with locking latch

•For fine and superfine stranded conductors, e.g. to DIN EN 60228 Cl. 5 and 6
•To DIN 46340, sheet 3
•Improved contact properties due to grooved profile
•With latch to engage in housing



Material: Brass (CuZn)
Surface: Tin plated

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal cross section Tab thickness Tab width a1 a2 l1 l2 l3 s Price Unit Quantity
2720 2720 Klauke un-insulated receptacles with locking latch 0.5-1mm sq 0.5-1mm² 0.8mm 6.3mm 8.5mm 4.5mm 19.2mm 7.4mm 7mm 0.38mm
£9.13 (exc VAT) per 100
£10.96 (inc VAT)
2730 2730 Klauke un-insulated receptacles with locking latch 1.5-2.5mm sq 1.5-2.5mm² 0.8mm 6.3mm 8.5mm 4.5mm 19.2mm 7.4mm 7mm 0.38mm
£9.13 (exc VAT) per 100
£10.96 (inc VAT)
2750 2750 Klauke un-insulated receptacles with locking latch 4-6mm sq 4-6mm² 0.8mm 6.3mm 8.5mm 4.5mm 19.2mm 7.4mm 7mm 0.38mm
£9.32 (exc VAT) per 100
£11.18 (inc VAT)
