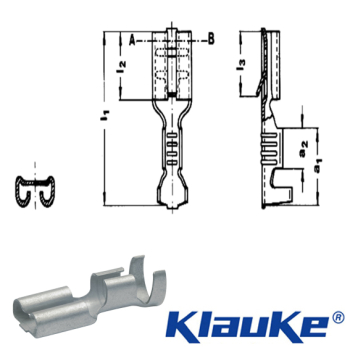

2730 Klauke un-insulated receptacles with locking latch 1.5-2.5mm sq

2730 Klauke un-insulated receptacles with locking latch 1.5-2.5mm sq

Stock Code: 2730
£9.13 (exc VAT) 100 per Pack
£10.96 (inc VAT)
Quantity:
100 per Pack - +

Descriptions

2730 Klauke un-insulated receptacle with locking latch 1.5-2.5mm²

•For fine and superfine stranded conductors, e.g. to DIN EN 60228 Cl. 5 and 6
•To DIN 46340, sheet 3
•Improved contact properties due to grooved profile
•With latch to engage in housing


Material: Brass (CuZn)
Surface: Tin plated

Nominal cross section1.5-2.5mm²
Tab thickness0.8mm
Tab width6.3mm
a18.5mm
a24.5mm
l119.2mm
l27.4mm
l37mm
s0.38mm

There are no downloads for this product.
