2220 Klauke un-insulated tab for fine stranded conductors 0.5-1mm sq

2220 Klauke un-insulated tab for fine stranded conductors 0.5-1mm sq

Stock Code: 2220
£9.96 (exc VAT) 100 per Pack
£11.95 (inc VAT)
Quantity:
100 per Pack - +

Descriptions

2220 Klauke un-insulated tab 0.5-1mm²

•For fine and superfine stranded conductors, e.g. to DIN EN 60228 Cl. 5 and 6
•Improved contact properties due to grooved profile



Material: Brass (CuZn)
Surface: Tin plated

Nominal cross section0.5-1mm²
Tab thickness0.8mm
Tab width6.3mm

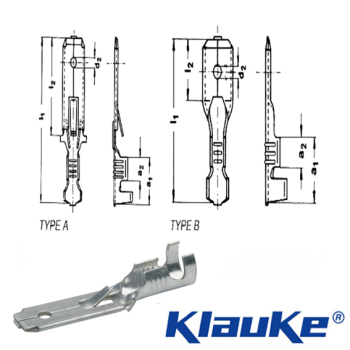

TypeA
a18.2mm
a24mm
d21.65mm
l128mm
l216mm
