85V8 Klauke M8 stainless steel lug 35mm²

85V8 Klauke M8 stainless steel lug 35mm²

Stock Code: 85V8
1 In Stock
£64.68 (exc VAT) 10 per Pack
£77.62 (inc VAT)
Quantity:
10 per Pack - +

Descriptions

The 85V8 Klauke M8 stainless steel lug 35mm² from Klauke's range of V2A stainless steel lugs for extreme environments and high temperatures up to 400°C

Characteristics
•Flat contact surface by special pressing technology
•Simple and safe connection due to flat contact surfaces and internal chamfer
•For multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2
•For pre-rounded stranded sector shaped conductors
•Ideal for aggressive environmental conditions, acid and rust-resistant
•Heat resistant up to 400 °C

Material: V2A

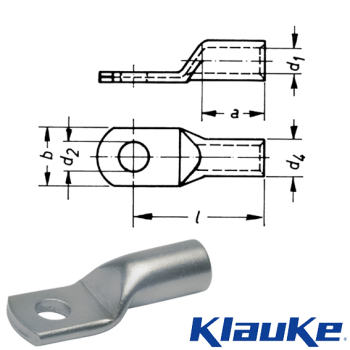

Nominal cross section35mm²
Size of bolt (ø)M8
d19mm
a17mm
b17mm
d28.5mm
d412mm
l35mm
